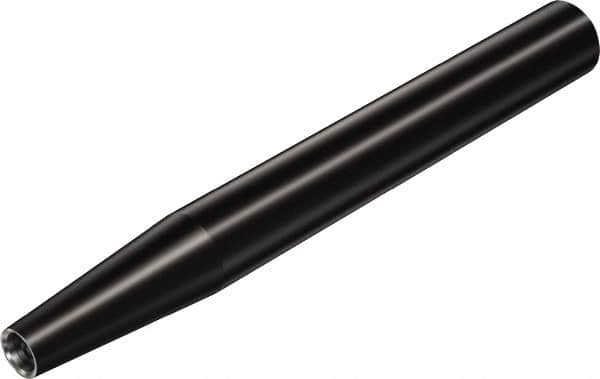

Sandvik Coromant - Coromant EH 32mm Straight Shank Milling Tip Insert Holder & Shank - 180mm Projection, 19.2mm Nose Diam, 180mm OAL, Exx-Axx-CS (3) Tool Holder
Item #: 49539240
Brand: Sandvik Coromant
Model #: 5731447
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | Coromant EH |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Projection (mm) | 180.00 |
| Projection (Decimal Inch) | 7.0866 |
| Nose Diameter (mm) | 19.20 |
| Nose Diameter (Decimal Inch) | 0.7559 |
| Overall Length (mm) | 180.00 |
| Overall Length (Decimal Inch) | 7.0866 |
| Through Coolant | Yes |
| Maximum Diameter (mm) | 19.20 |
| Maximum Diameter (Decimal Inch) | 0.7559 |
| Toolholder Style | Exx-Axx-CS (3) |
