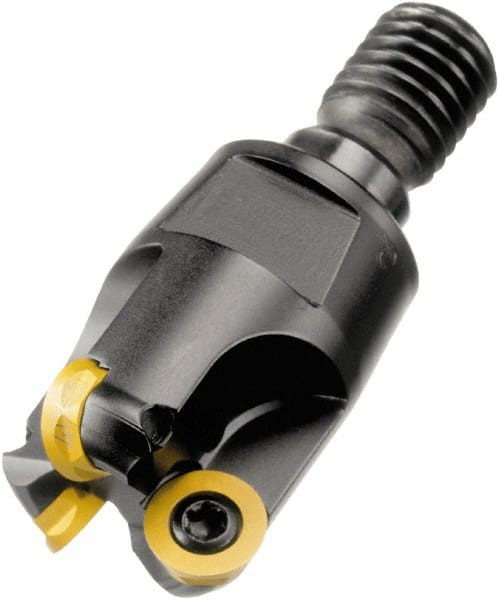

Sandvik Coromant - 16mm Cutting Diam, 4mm Max Depth of Cut, M8 Modular Connection, Indexable Copy End Mill - Screw Holding Method, R300-0828.. Insert Style, R300..Txx Toolholder
Item #: 49539364
Brand: Sandvik Coromant
Model #: 5744700
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Shank Type | Modular Connection |
| Number of Cutter Inserts | 2 |
| Insert Style | R300-0828.. |
| Toolholder Style | R300..Txx |
| Overall Length (mm) | 42.50 |
| Overall Length (Decimal Inch) | 1.6732 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (mm) | 8.00 |
| Head Length (Decimal Inch) | 0.9843 |
| Maximum RPM | 1000 |
| Maximum Cutting Diameter (Decimal Inch) | 0.629921 |
| Minimum Cutting Diameter (Decimal Inch) | 0.3150 |
| Projection (mm) | 25.00 |
| Projection (Decimal Inch) | 0.9843 |
| Modular Connection Size | M8 |
