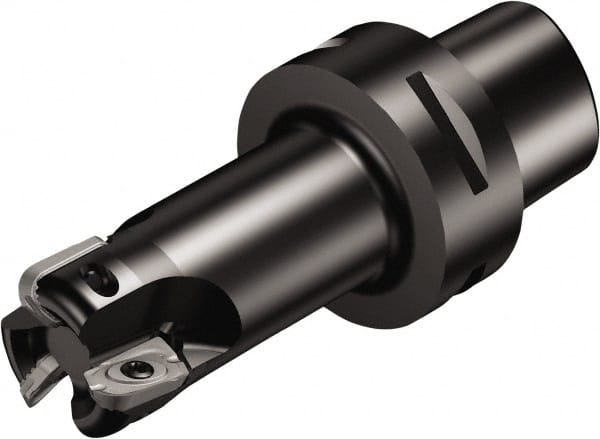

Sandvik Coromant - 4 Inserts, 36mm Cut Diam, 32mm Arbor Diam, 12mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 86mm High, R790-1604.. Insert Compatibility, Through Coolant, Series CoroMill 790
Item #: 49539372
Brand: Sandvik Coromant
Model #: 5912529
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 36.00 |
| Cutting Diameter (Decimal Inch) | 1.4173 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Overall Height (mm) | 86.00 |
| Overall Height (Decimal Inch) | 3.3858 |
| Insert Compatibility | R790-1604.. |
| Series | CoroMill 790 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | R790..Cx |
| Maximum RPM | 44560 |
| ISO Number | R790-036C3S1-16H |
| Complete Insert Compatibility | R790-1604.. |
| Toolholder Material | Steel |
