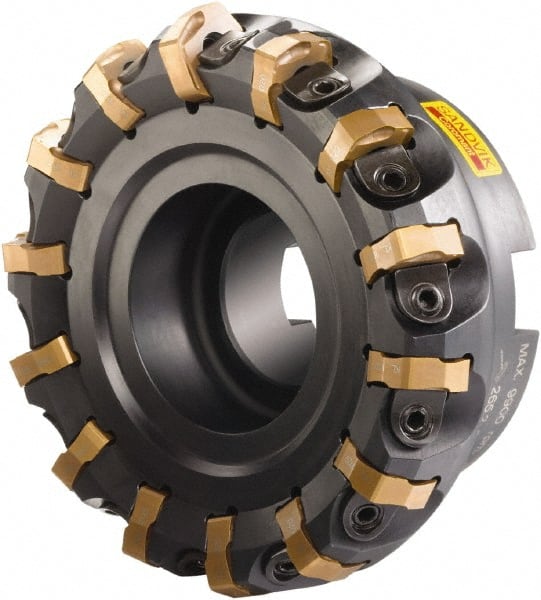

Sandvik Coromant - 101.6mm Cut Diam, 38.1mm Arbor Hole, 6mm Max Depth of Cut, 65° Indexable Chamfer & Angle Face Mill - 14 Inserts, L365-1505ZNE Insert, Left Hand Cut, Series CoroMill 365
Item #: 49539380
Brand: Sandvik Coromant
Model #: 5732010
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 101.6 |
| Cutting Diameter (Decimal Inch) | 4 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 65 |
| Overall Height (mm) | 50 |
| Insert Compatibility | L365-1505ZNE |
| Series | CoroMill 365 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.23622 |
| Number of Cutter Inserts | 14 |
| Insert Holding Method | Wedge |
| Cutter Style | R/LA365..Rxx-W |
| Keyway Width (mm) | 16.08 |
| Keyway Width (Decimal Inch) | 0.6331 |
| Maximum RPM | 9800 |
| Cutting Direction | Left Hand |
| Complete Insert Compatibility | L365-1505ZNE |
| Toolholder Material | Steel |
| Complete Insert Compatibility | L365-1505ZNE |
| Insert Holding Method | Wedge |
| Maximum RPM | 9800 |
| Toolholder Material | Steel |
| Through Coolant | No |
