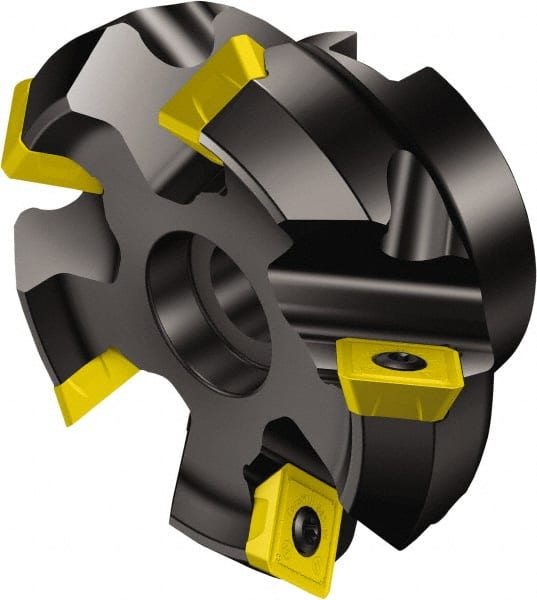

Sandvik Coromant - 200mm Cut Diam, 60mm Arbor Hole, 10mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 12 Inserts, R245-18T6.. Insert, Right Hand Cut, Series CoroMill 245
Item #: 49539497
Brand: Sandvik Coromant
Model #: 5743989
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 200 |
| Cutting Diameter (Decimal Inch) | 7.87402 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3622 |
| Lead Angle | 45 |
| Overall Height (mm) | 63 |
| Insert Compatibility | R245-18T6.. |
| Series | CoroMill 245 |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.393701 |
| Number of Cutter Inserts | 12 |
| Cutter Style | R245..Qxx |
| Keyway Width (mm) | 25.70 |
| Keyway Width (Decimal Inch) | 1.0118 |
| Maximum RPM | 3800 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | R245-18T6.. |
| Toolholder Material | Steel |
| Complete Insert Compatibility | R245-18T6.. |
| Maximum RPM | 3800 |
| Toolholder Material | Steel |
| Through Coolant | No |
