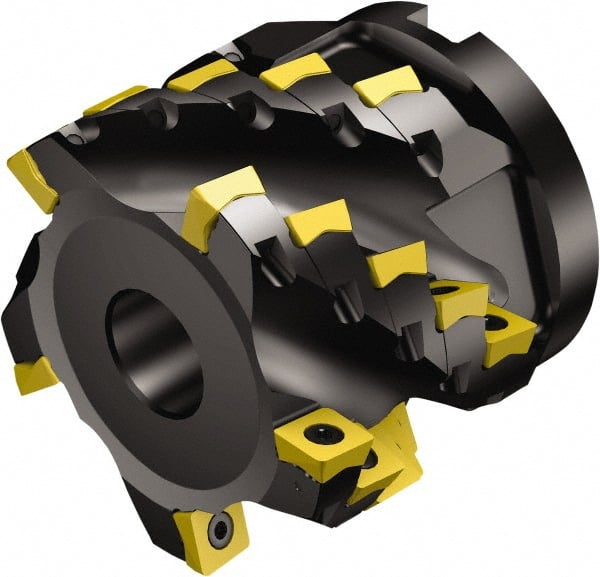

Sandvik Coromant - 80mm Cut Diam, 32mm Arbor Diam, 61mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 98mm High, 690-140608M-E-SL & 690-140610M-P-SL Insert Compatibility, Series CoroMill 690
Item #: 49540164
Brand: Sandvik Coromant
Model #: 5764756
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Overall Height (mm) | 98.00 |
| Overall Height (Decimal Inch) | 3.8583 |
| Insert Compatibility | 690-140608M-E-SL; 690-140610M-P-SL |
| Series | CoroMill 690 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 61.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.4016 |
| Cutting Direction | 690-140608M-E-SL |
| Insert Holding Method | Screw |
| Cutter Style | 690..Qxx |
| Maximum RPM | 5000 |
| ISO Number | 690-080Q32-1461M |
| Complete Insert Compatibility | 690-140608M-E-SL; 690-140610M-P-SL |
| Toolholder Material | Steel |
