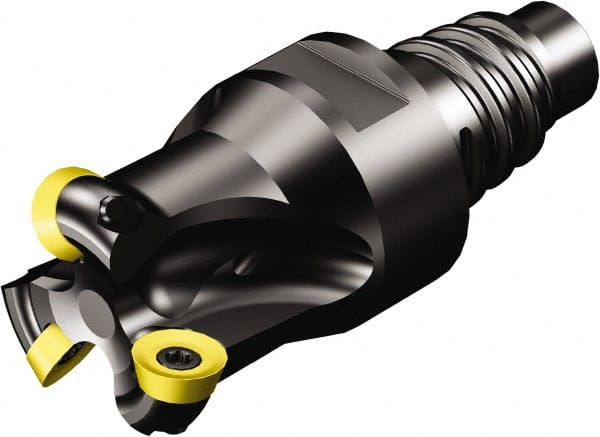

Sandvik Coromant - 10mm Cutting Diam, 2.5mm Max Depth of Cut, E10 Modular Connection, Indexable Copy End Mill - Screw Holding Method, R300-0517.. Insert Style, R300..EH Toolholder, Through Coolant
Item #: 49540412
Brand: Sandvik Coromant
Model #: 6550010
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 10.00 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Shank Type | Modular Connection |
| Number of Cutter Inserts | 2 |
| Insert Style | R300-0517.. |
| Toolholder Style | R300..EH |
| Overall Length (mm) | 31.20 |
| Overall Length (Decimal Inch) | 1.2284 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (mm) | 5.00 |
| Head Length (Decimal Inch) | 0.7874 |
| Maximum RPM | 20000 |
| Maximum Cutting Diameter (Decimal Inch) | 0.393701 |
| Minimum Cutting Diameter (Decimal Inch) | 0.1969 |
| Projection (mm) | 20.00 |
| Projection (Decimal Inch) | 0.7874 |
| Modular Connection Size | E10 |
