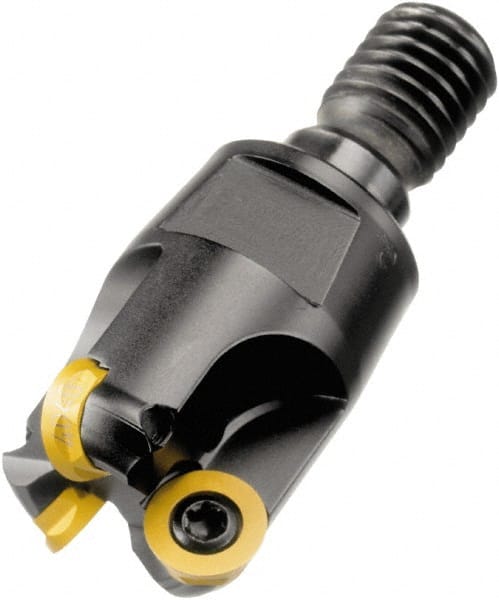

Sandvik Coromant - 32mm Cutting Diam, 4mm Max Depth of Cut, M16 Modular Connection, Indexable Copy End Mill - Screw Holding Method, R300-0828.. Insert Style, R300..Txx (POS) Toolholder, Through Coolant
Item #: 49540487
Brand: Sandvik Coromant
Model #: 5744633
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Shank Type | Modular Connection |
| Number of Cutter Inserts | 5 |
| Insert Style | R300-0828.. |
| Toolholder Style | R300..Txx (POS) |
| Overall Length (mm) | 69.00 |
| Overall Length (Decimal Inch) | 2.7165 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Number of Flutes | 5 |
| Minimum Cutting Diameter (mm) | 24.00 |
| Head Length (Decimal Inch) | 1.7716 |
| Maximum RPM | 1000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.25984 |
| Minimum Cutting Diameter (Decimal Inch) | 0.9448 |
| Projection (mm) | 45.00 |
| Projection (Decimal Inch) | 1.7716 |
| Modular Connection Size | M16 |
