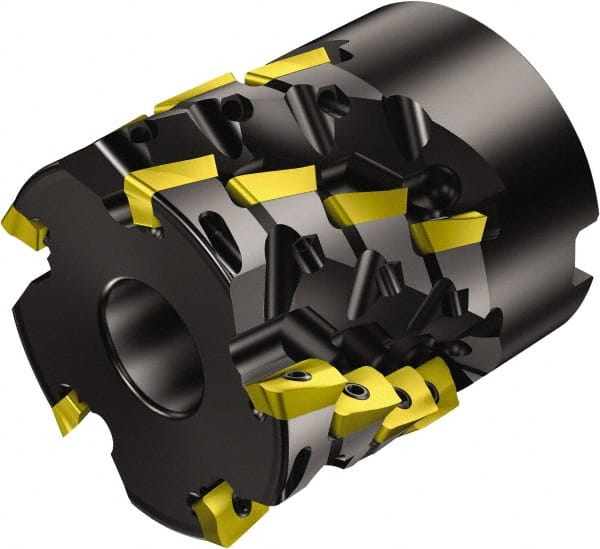

Sandvik Coromant - 8 Inserts, 50mm Cut Diam, 22mm Arbor Diam, 57mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 82.6mm High, R390-18.. Insert Compatibility, Series CoroMill 390
Item #: 49540651
Brand: Sandvik Coromant
Model #: 5745591
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Overall Height (mm) | 82.60 |
| Overall Height (Decimal Inch) | 3.2520 |
| Insert Compatibility | R390-18.. |
| Series | CoroMill 390 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 57.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.2441 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | R390..Qxx (LE) |
| Maximum RPM | 7900 |
| ISO Number | R390-050Q22-57L |
| Complete Insert Compatibility | R390-18.. |
| Toolholder Material | Steel |
