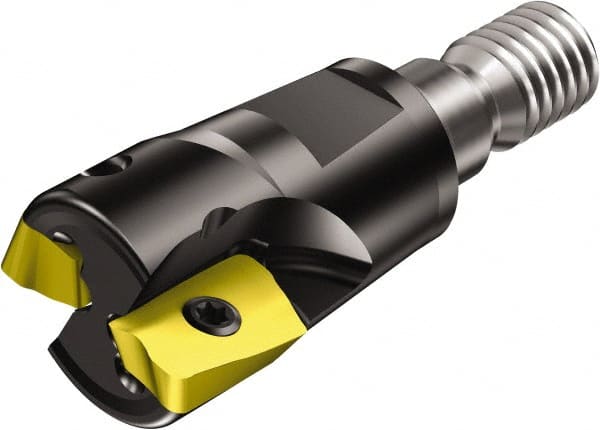

Sandvik Coromant - 2 Inserts, 16mm Cut Diam, 12.8mm Arbor Diam, 10mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 42.5mm High, R390-11.. Insert Compatibility, Series CoroMill 390
Item #: 49540701
Brand: Sandvik Coromant
Model #: 5745970
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Arbor Hole Diameter (mm) | 12.80 |
| Arbor Hole Diameter (Decimal Inch) | 0.5039 |
| Overall Height (mm) | 42.50 |
| Overall Height (Decimal Inch) | 1.6732 |
| Insert Compatibility | R390-11.. |
| Series | CoroMill 390 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Cutter Style | R390..Txx |
| Maximum RPM | 10900 |
| ISO Number | R390-16T08-11L |
| Complete Insert Compatibility | R390-11.. |
| Toolholder Material | Steel |
