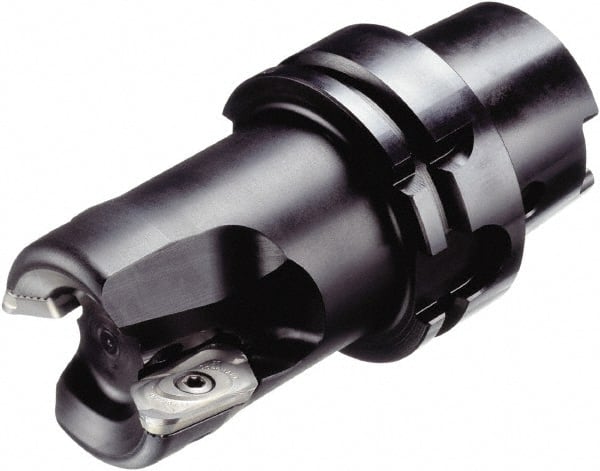

Sandvik Coromant - 2 Inserts, 25mm Cut Diam, 63mm Arbor Diam, 12mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 113mm High, R790-1604.. Insert Compatibility, Through Coolant, Series CoroMill 790
Item #: 49540727
Brand: Sandvik Coromant
Model #: 5747279
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Arbor Hole Diameter (mm) | 63.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 113.00 |
| Overall Height (Decimal Inch) | 4.4488 |
| Insert Compatibility | R790-1604.. |
| Series | CoroMill 790 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Cutter Style | R790..HAxx |
| Maximum RPM | 20000 |
| ISO Number | R790-025HA06S2-16L |
| Complete Insert Compatibility | R790-1604.. |
| Toolholder Material | Steel |
