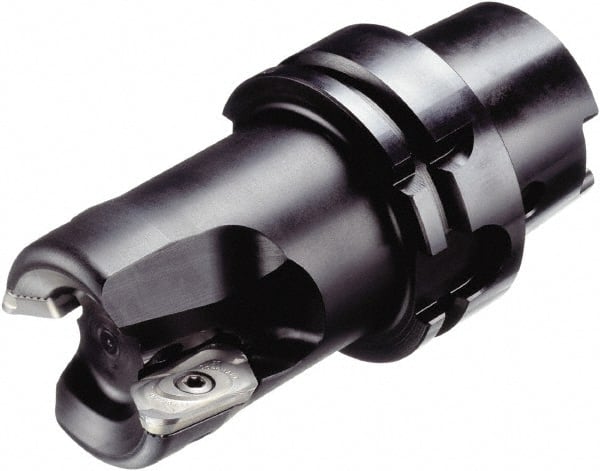

Sandvik Coromant - 3 Inserts, 40mm Cut Diam, 63mm Arbor Diam, 12mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 143mm High, R790-1604.. Insert Compatibility, Through Coolant, Series CoroMill 790
Item #: 49540743
Brand: Sandvik Coromant
Model #: 5747262
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Arbor Hole Diameter (mm) | 63.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 143.00 |
| Overall Height (Decimal Inch) | 5.6299 |
| Insert Compatibility | R790-1604.. |
| Series | CoroMill 790 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Cutter Style | R790..HAxx |
| Maximum RPM | 20000 |
| ISO Number | R790-040HA06S2-16M |
| Complete Insert Compatibility | R790-1604.. |
| Toolholder Material | Steel |
