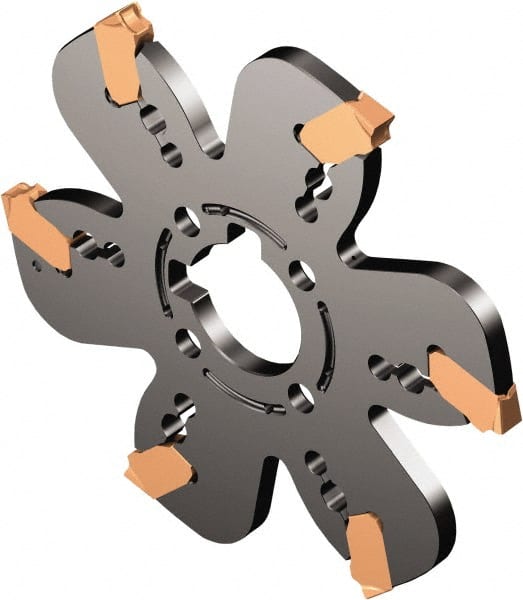

Sandvik Coromant - 3/16" Cutting Width, 1.4252" Depth of Cut, 152.4mm Cutter Diam, 1-1/2" Hole Diam, Indexable Slotting Cutter - 1-1/2" Shank Diam, AQD..Y..C Toolholder, Right Hand Cutting Direction
Item #: 49541360
Brand: Sandvik Coromant
Model #: 6657541
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Width (mm) | 4.76 |
| Cutting Width (Decimal Inch) | 0.1874 |
| Cutting Width (Decimal Inch) | 0.187402 |
| Cutting Width (mm) | 4.76 |
| Maximum Depth of Cut (mm) | 36.20 |
| Maximum Depth of Cut (Decimal Inch) | 1.4252 |
| Maximum Depth of Cut (Decimal Inch) | 1.4252 |
| Maximum Depth of Cut (mm) | 36.2 |
| Cutter Diameter (mm) | 152.40 |
| Cutter Diameter (Decimal Inch) | 6.0000 |
| Hole Diameter (mm) | 38.10 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (mm) | 38.10 |
| Shank Diameter (Inch) | 1.5 |
| Modular Connection Size | Y38 |
| Toolholder Style | AQD..Y..C |
| Series | CoroMill QD |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Right Hand |
| Cutting Direction | Right Hand |
| Maximum RPM | 3000 |
| Maximum RPM | 3000 |
| Through Coolant | Yes |
| Complete Insert Compatibility1 | QD-NJ-0476-030E-PM |
| Overall Height (mm) | 4.53 |
| Overall Height (Decimal Inch) | 0.1782 |
