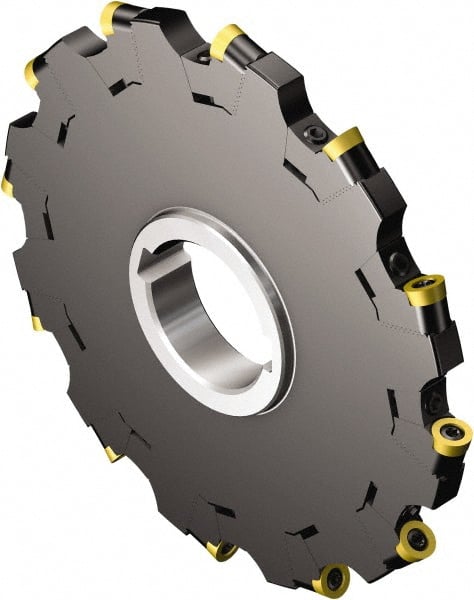

Sandvik Coromant - 27 Connection, 0.4724" Cutting Width, 0.8071" Depth of Cut, 1-1/16" Hole Diam, 6 Tooth Indexable Slotting Cutter - N331.32..Sxx.. MQ Toolholder, RCKT 12 04 M0 Insert, Neutral Cutting Direction
Item #: 49541485
Brand: Sandvik Coromant
Model #: 5738800
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | 27 |
| Cutting Width (mm) | 12.00 |
| Cutting Width (Decimal Inch) | 0.4724 |
| Cutting Width (Decimal Inch) | 0.472441 |
| Cutting Width (mm) | 12 |
| Maximum Depth of Cut (mm) | 20.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.8071 |
| Maximum Depth of Cut (Decimal Inch) | 0.807087 |
| Maximum Depth of Cut (mm) | 20.5 |
| Hole Diameter (mm) | 27.00 |
| Hole Diameter (Decimal Inch) | 1.0630 |
| Modular Connection Size | 27 |
| Number of Teeth | 6 |
| Toolholder Style | N331.32..Sxx.. MQ |
| Series | CoroMill 331 |
| Insert Style | RCKT 12 04 M0 |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Neutral |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Insert Holding Method | Screw |
| Maximum RPM | 18100 |
| Maximum RPM | 18100 |
| Hub Diameter (mm) | 39.00 |
| Hub Diameter (Decimal Inch) | 1.5354 |
| Hub Diameter (mm) | 39.00 |
| Hub Diameter (Decimal Inch) | 1.5354 |
| Keyway Width (Decimal Inch) | 0.2756 |
| Keyway Width (mm) | 7.00 |
| Keyway Width (Decimal Inch) | 0.2756 |
| Through Coolant | No |
| Complete Insert Compatibility1 | RCKT 12 04 M0 |
