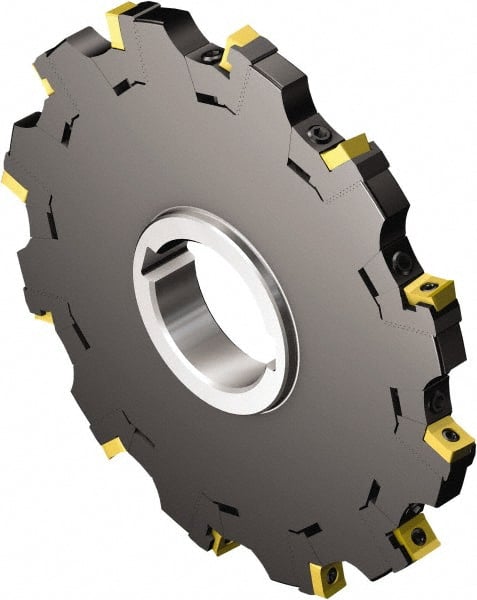

Sandvik Coromant - Arbor Connection, 0.8071" Cutting Width, 2.618" Depth of Cut, 203.2mm Cutter Diam, 2" Hole Diam, Indexable Slotting Cutter - 2" Shank Diam, Neutral Cutting Direction
Item #: 49541543
Brand: Sandvik Coromant
Model #: 6448879
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor |
| Cutting Width (mm) | 20.50 |
| Cutting Width (Decimal Inch) | 0.8071 |
| Cutting Width (Decimal Inch) | 0.807087 |
| Cutting Width (mm) | 20.5 |
| Maximum Depth of Cut (mm) | 66.50 |
| Maximum Depth of Cut (Decimal Inch) | 2.6180 |
| Maximum Depth of Cut (Decimal Inch) | 2.618 |
| Maximum Depth of Cut (mm) | 66.5 |
| Cutter Diameter (mm) | 203.20 |
| Cutter Diameter (Decimal Inch) | 8.0000 |
| Hole Diameter (mm) | 50.80 |
| Hole Diameter (Decimal Inch) | 2.0000 |
| Shank Diameter (mm) | 50.80 |
| Shank Diameter (Decimal Inch) | 2 |
| Modular Connection Size | 2 |
| Series | CoroMill 331 |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Neutral |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Insert Holding Method | Screw |
| Maximum RPM | 8000 |
| Maximum RPM | 8000 |
| Minimum Cutting Width (Decimal Inch) | 0.8071 |
| Maximum Cutting Width (Decimal Inch) | 0.9252 |
| Maximum Cutting Width (mm) | 23.50 |
| Maximum Cutting Width (Decimal Inch) | 0.925197 |
| Maximum Cutting Width (mm) | 23.5 |
| Hub Diameter (mm) | 68.00 |
| Hub Diameter (Decimal Inch) | 2.6770 |
| Hub Diameter (mm) | 68.00 |
| Hub Diameter (Decimal Inch) | 2.6770 |
| Keyway Width (Decimal Inch) | 0.5000 |
| Keyway Width (mm) | 12.70 |
| Keyway Width (Decimal Inch) | 0.5000 |
| Lead Angle | 90 |
| Maximum Body Diameter (Decimal Inch) | 8.0000 |
| Through Coolant | No |
| Complete Insert Compatibility1 | N331.1A-14 |
