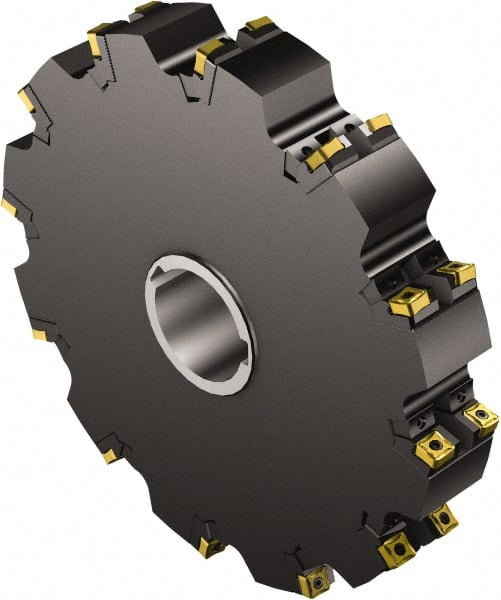

Sandvik Coromant - Arbor Connection, 1.2126" Cutting Width, 4.5079" Depth of Cut, 315mm Cutter Diam, 2.3622" Hole Diam, Indexable Slotting Cutter - 2.3622" Shank Diam, N331.1A-11 Insert, Neutral Cutting Direction
Item #: 49541592
Brand: Sandvik Coromant
Model #: 5738619
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor |
| Cutting Width (mm) | 30.80 |
| Cutting Width (Decimal Inch) | 1.2126 |
| Cutting Width (Decimal Inch) | 1.2126 |
| Cutting Width (mm) | 30.8 |
| Maximum Depth of Cut (mm) | 114.50 |
| Maximum Depth of Cut (Decimal Inch) | 4.5079 |
| Maximum Depth of Cut (Decimal Inch) | 4.5079 |
| Maximum Depth of Cut (mm) | 114.5 |
| Cutter Diameter (mm) | 315.00 |
| Cutter Diameter (Decimal Inch) | 12.4016 |
| Hole Diameter (mm) | 60.00 |
| Hole Diameter (Decimal Inch) | 2.3622 |
| Shank Diameter (mm) | 60.00 |
| Shank Diameter (Decimal Inch) | 2.3622 |
| Modular Connection Size | 60 |
| Series | CoroMill 331 |
| Insert Style | N331.1A-11 |
| Number of Cutter Inserts | 40 |
| Cutting Direction | Neutral |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Insert Holding Method | Screw |
| Maximum RPM | 7600 |
| Maximum RPM | 7600 |
| Minimum Cutting Width (Decimal Inch) | 1.2126 |
| Maximum Cutting Width (Decimal Inch) | 1.3307 |
| Maximum Cutting Width (mm) | 33.80 |
| Maximum Cutting Width (Decimal Inch) | 1.33071 |
| Maximum Cutting Width (mm) | 33.8 |
| Hub Diameter (mm) | 84.00 |
| Hub Diameter (Decimal Inch) | 3.3071 |
| Hub Diameter (mm) | 84.00 |
| Hub Diameter (Decimal Inch) | 3.3071 |
| Keyway Width (Decimal Inch) | 0.5512 |
| Keyway Width (mm) | 14.00 |
| Keyway Width (Decimal Inch) | 0.5512 |
| Lead Angle | 90 |
| Maximum Body Diameter (Decimal Inch) | 12.4016 |
| Through Coolant | No |
| Complete Insert Compatibility1 | N331.1A-11 |
