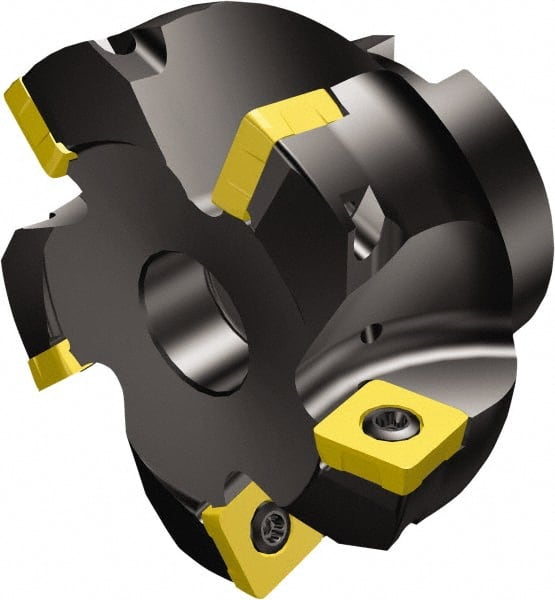

Sandvik Coromant - 5 Inserts, 1.9252" Cutter Diam, 0.0472" Max Depth of Cut, Indexable High-Feed Face Mill - 0.8661" Arbor Hole Diam, 0.4094" Keyway Width, R210..Qxx Toolholder, R210-090412M- Inserts, Series CoroMill 210
Item #: 49541691
Brand: Sandvik Coromant
Model #: 5742511
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.9252 |
| Maximum Depth of Cut (Decimal Inch) | 0.0472 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Series | CoroMill 210 |
| Cutter Style | R210..Qxx |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | R210-090412M- |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 21800 |
| Maximum Body Diameter (Decimal Inch) | 2.3606 |
| Through Coolant | Yes |
| Complete Insert Compatibility | R210-090412M- |
| Keyway Width (Decimal Inch) | 0.4094 |
