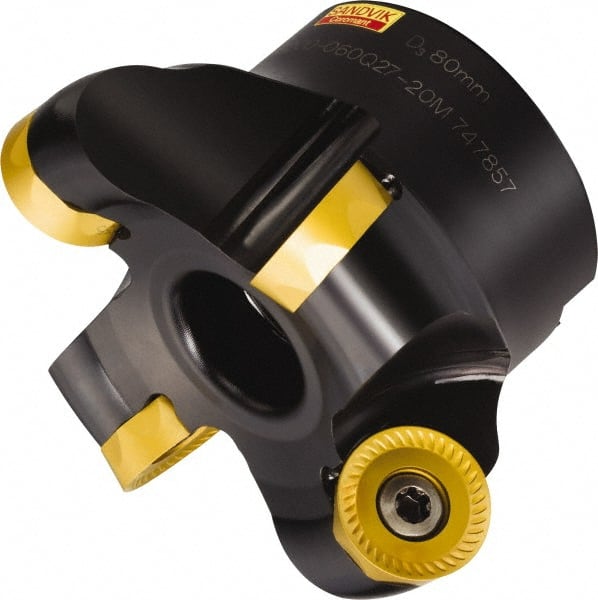

Sandvik Coromant - 8 Inserts, 5.5118" Cutter Diam, 0.3937" Max Depth of Cut, Indexable High-Feed Face Mill - 1.5748" Arbor Hole Diam, 0.6457" Keyway Width, R200..Qxx Toolholder, RCKT 20 06 M0 Inserts, Series CoroMill 200
Item #: 49541709
Brand: Sandvik Coromant
Model #: 5742331
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 5.5118 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Series | CoroMill 200 |
| Cutter Style | R200..Qxx |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | RCKT 20 06 M0 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 6900 |
| Maximum Body Diameter (Decimal Inch) | 6.2992 |
| Through Coolant | No |
| Complete Insert Compatibility | RCKT 20 06 M0 |
| Keyway Width (Decimal Inch) | 0.6457 |
