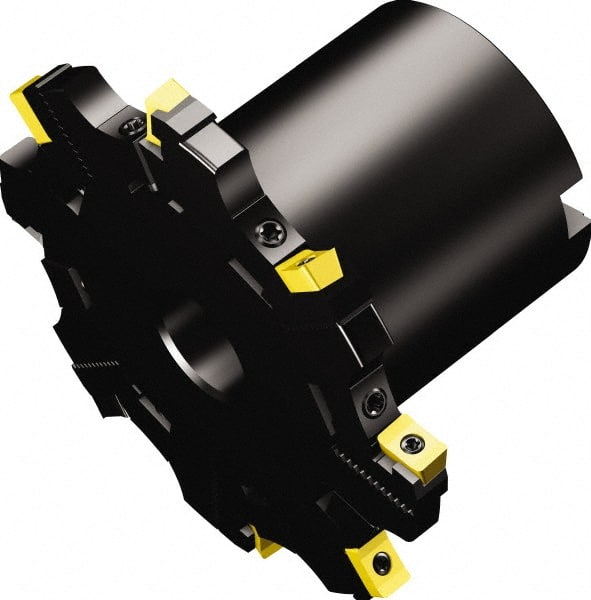

Sandvik Coromant - Arbor Connection, 0.5906" Cutting Width, 2" Depth of Cut, 200mm Cutter Diam, 1.5748" Hole Diam, Indexable Slotting Cutter - 1.5748" Shank Diam, N331.1A-11 Insert, Right Hand Cutting Direction
Item #: 49541998
Brand: Sandvik Coromant
Model #: 5745132
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor |
| Cutting Width (mm) | 15.00 |
| Cutting Width (Decimal Inch) | 0.5906 |
| Cutting Width (Decimal Inch) | 0.590551 |
| Cutting Width (mm) | 15 |
| Maximum Depth of Cut (mm) | 51.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.0079 |
| Maximum Depth of Cut (Decimal Inch) | 2.0079 |
| Maximum Depth of Cut (mm) | 51 |
| Cutter Diameter (mm) | 200.00 |
| Cutter Diameter (Decimal Inch) | 7.8740 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Modular Connection Size | 40S |
| Series | CoroMill 331 |
| Insert Style | N331.1A-11 |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Insert Holding Method | Screw |
| Maximum RPM | 9600 |
| Maximum RPM | 9600 |
| Minimum Cutting Width (Decimal Inch) | 0.5906 |
| Maximum Cutting Width (Decimal Inch) | 0.6890 |
| Maximum Cutting Width (mm) | 17.50 |
| Maximum Cutting Width (Decimal Inch) | 0.688976 |
| Maximum Cutting Width (mm) | 17.5 |
| Hub Diameter (mm) | 96.00 |
| Hub Diameter (Decimal Inch) | 3.7795 |
| Hub Diameter (mm) | 96.00 |
| Hub Diameter (Decimal Inch) | 3.7795 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Keyway Width (mm) | 16.40 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Lead Angle | 90 |
| Maximum Body Diameter (Decimal Inch) | 7.8740 |
| Through Coolant | No |
| Complete Insert Compatibility1 | N331.1A-11 |
