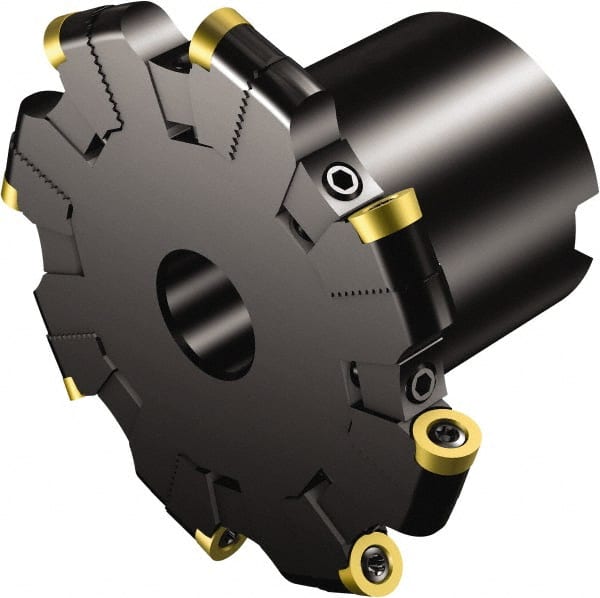

Sandvik Coromant - 40S Connection, 0.6299" Cutting Width, 2.0472" Depth of Cut, 1.5748" Hole Diam, 12 Tooth Indexable Slotting Cutter - R331.32..Qxx..MQ Toolholder, RCKT 16 06 M0 Insert, Right Hand Cutting Direction
Item #: 49542012
Brand: Sandvik Coromant
Model #: 5744901
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | 40S |
| Cutting Width (mm) | 16.00 |
| Cutting Width (Decimal Inch) | 0.6299 |
| Cutting Width (Decimal Inch) | 0.629921 |
| Cutting Width (mm) | 16 |
| Maximum Depth of Cut (mm) | 52.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.0472 |
| Maximum Depth of Cut (Decimal Inch) | 2.0472 |
| Maximum Depth of Cut (mm) | 52 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Modular Connection Size | 40S |
| Number of Teeth | 12 |
| Toolholder Style | R331.32..Qxx..MQ |
| Series | CoroMill 331 |
| Insert Style | RCKT 16 06 M0 |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Insert Holding Method | Screw |
| Maximum RPM | 9600 |
| Maximum RPM | 9600 |
| Hub Diameter (mm) | 96.00 |
| Hub Diameter (Decimal Inch) | 3.7795 |
| Hub Diameter (mm) | 96.00 |
| Hub Diameter (Decimal Inch) | 3.7795 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Keyway Width (mm) | 16.40 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Through Coolant | No |
| Complete Insert Compatibility1 | RCKT 16 06 M0 |
