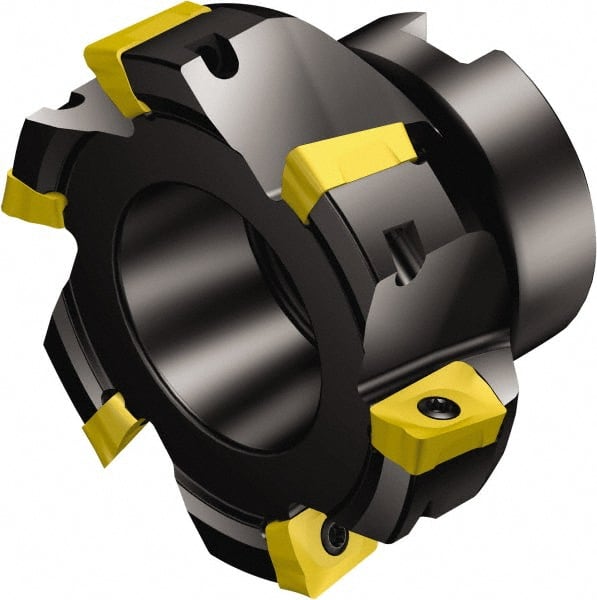

Sandvik Coromant - 7 Inserts, 100mm Cut Diam, 32mm Arbor Diam, 15.7mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 50mm High, R390-17.. Insert Compatibility, Series CoroMill 390
Item #: 49542350
Brand: Sandvik Coromant
Model #: 5745527
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | R390-17.. |
| Series | CoroMill 390 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 15.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.6181 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | R390..Qxx |
| Maximum RPM | 12700 |
| ISO Number | R390-100Q32-17M |
| Complete Insert Compatibility | R390-17.. |
| Toolholder Material | Steel |
