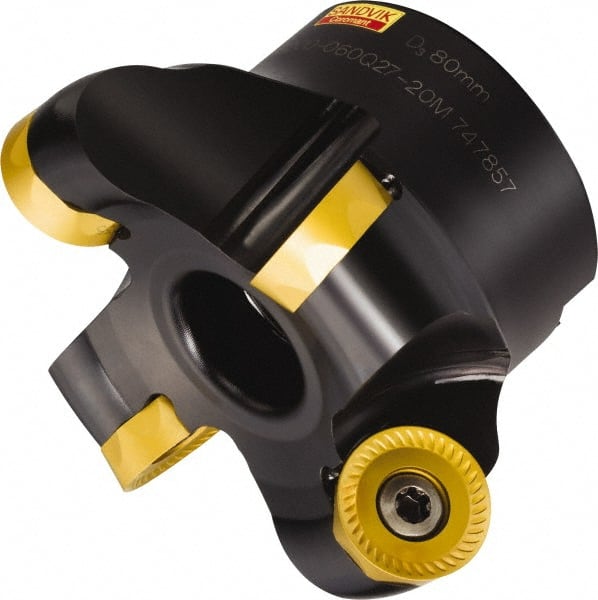

Sandvik Coromant - 6 Inserts, 2.6772" Cutter Diam, 0.2362" Max Depth of Cut, Indexable High-Feed Face Mill - 1" Arbor Hole Diam, 0.3839" Keyway Width, RA200..Jxx Toolholder, RCKT 12 04 M0 Inserts, Series CoroMill 200
Item #: 49542392
Brand: Sandvik Coromant
Model #: 5738551
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.6772 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Series | CoroMill 200 |
| Cutter Style | RA200..Jxx |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | RCKT 12 04 M0 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 14000 |
| Maximum Body Diameter (Decimal Inch) | 3.1496 |
| Through Coolant | No |
| Complete Insert Compatibility | RCKT 12 04 M0 |
| Keyway Width (Decimal Inch) | 0.3839 |
