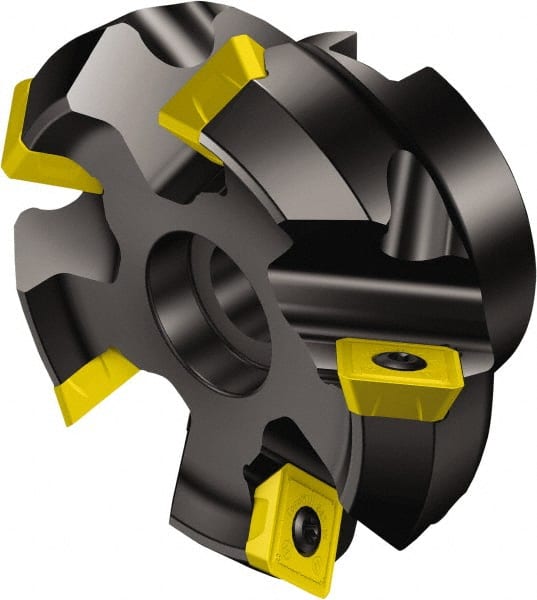

Sandvik Coromant - 160mm Cut Diam, 50.8mm Arbor Hole, 6mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 10 Inserts, R245-12T3.. Insert, Right Hand Cut, Series CoroMill 245
Item #: 49542483
Brand: Sandvik Coromant
Model #: 5739964
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160 |
| Cutting Diameter (Decimal Inch) | 6.2992 |
| Arbor Hole Diameter (mm) | 50.80 |
| Arbor Hole Diameter (Decimal Inch) | 2.0000 |
| Lead Angle | 45 |
| Overall Height (mm) | 63 |
| Insert Compatibility | R245-12T3.. |
| Series | CoroMill 245 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.23622 |
| Number of Cutter Inserts | 10 |
| Cutter Style | RA245..Jxx |
| Keyway Width (mm) | 19.28 |
| Keyway Width (Decimal Inch) | 0.7591 |
| Maximum RPM | 8900 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | R245-12T3.. |
| Toolholder Material | Steel |
| Complete Insert Compatibility | R245-12T3.. |
| Maximum RPM | 8900 |
| Toolholder Material | Steel |
| Through Coolant | No |
