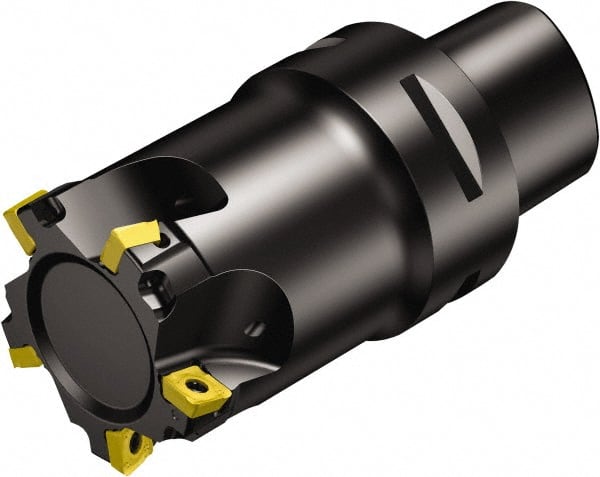

Sandvik Coromant - 10 Inserts, 84mm Cut Diam, 80mm Arbor Diam, 5.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 108mm High, 490R-08T308 Insert Compatibility, Through Coolant, Series CoroMill 490
Item #: 49543010
Brand: Sandvik Coromant
Model #: 5761887
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 84.00 |
| Cutting Diameter (Decimal Inch) | 3.3071 |
| Arbor Hole Diameter (mm) | 80.00 |
| Arbor Hole Diameter (Decimal Inch) | 3.1496 |
| Overall Height (mm) | 108.00 |
| Overall Height (Decimal Inch) | 4.2520 |
| Insert Compatibility | 490R-08T308 |
| Series | CoroMill 490 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Cutter Style | 490..Cx |
| Maximum RPM | 14000 |
| ISO Number | 490-084C8-08H |
| Complete Insert Compatibility | 490R-08T308 |
| Toolholder Material | Steel |
