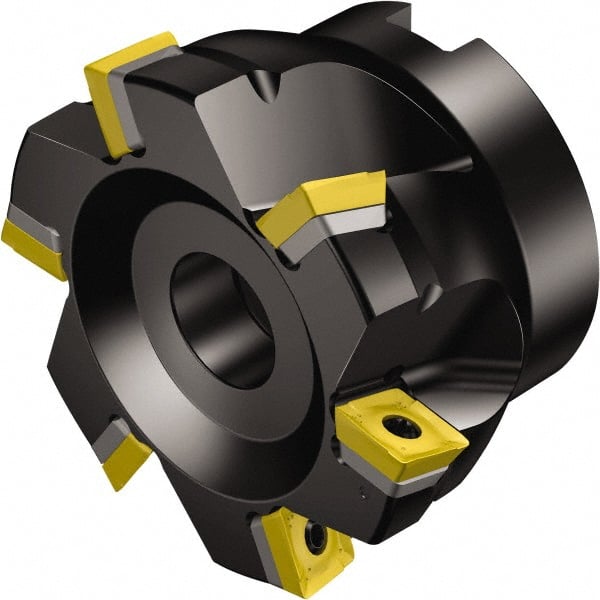

Sandvik Coromant - 18 Inserts, 250mm Cut Diam, 60mm Arbor Diam, 10mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 63mm High, 490R-1404 Insert Compatibility, Series CoroMill 490
Item #: 49543069
Brand: Sandvik Coromant
Model #: 5844053
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 250.00 |
| Cutting Diameter (Decimal Inch) | 9.8425 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3622 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | 490R-1404 |
| Series | CoroMill 490 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 18 |
| Insert Holding Method | Screw |
| Cutter Style | 490..Qxx |
| Maximum RPM | 5300 |
| ISO Number | 490-250Q60-14M |
| Complete Insert Compatibility | 490R-1404 |
| Toolholder Material | Steel |
