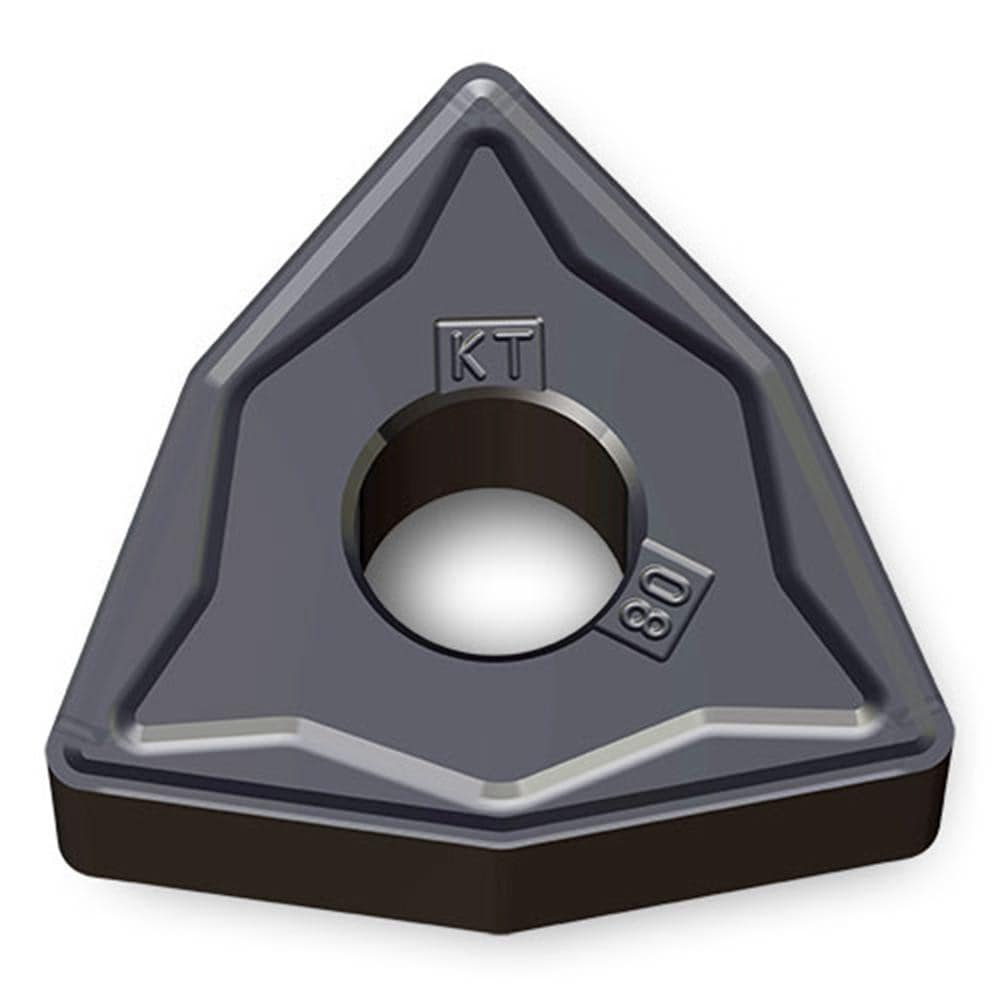

Turning Insert: WNMG433KT TT7025, Carbide
Item #: 29899606
Brand: Ingersoll Cutting Tools
Model #: 6186055
Product Specifications
| ANSI Insert Code | WNMG433 |
| ISO Insert Code | WNMG080412 |
| Relief Angle | 0 |
| Insert Style | WNMG |
| Corner Radius (Decimal Inch) | 0.0470 |
| Included Angle | 80 |
| Manufacturer Grade | TT7025 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Series | WNMG |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Carbide |
| Insert Shape | W - Trigon 80-Deg |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | W |
| Maximum Depth of Cut (Decimal Inch) | 0.2170 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.3430 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Iso Code | WNMG080412KT TT7025 |
| Chip Breaker | KT |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| ANSI Size Code | 433 |
| ISO Size Code | 080412 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 433 |
