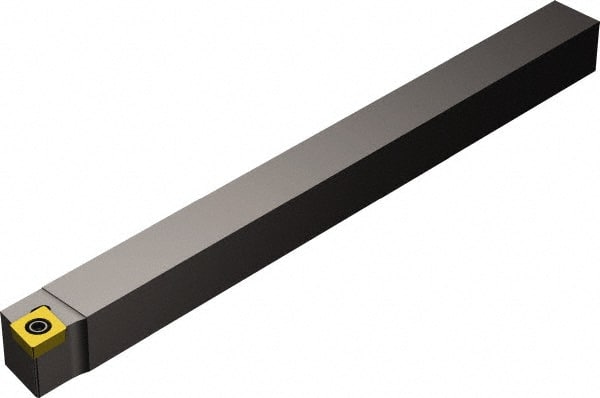

Sandvik Coromant - SCACR/L-S, Left Hand Cut, 0° Lead Angle, 12mm Shank Height x 12mm Shank Width, Neutral Rake Indexable Turning Toolholder - 125mm OAL, CCMT 09 T3 08, CCMT 3(2.5)2 Insert Compatibility, Series CoroTurn 107
Item #: 49615545
Brand: Sandvik Coromant
Model #: 5749036
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | SCACR/L-S |
| Rake | Neutral |
| Series | CoroTurn 107 |
| Lead Angle | 0 |
| Shank Width (mm) | 12.00 |
| Shank Width (Decimal Inch) | 0.4724 |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Insert Compatibility | CCMT 09 T3 08; CCMT 3(2.5)2 |
| Insert Holding Method | Screw Clamping |
| Back of Bar to Cutting Edge (mm) | 125.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9213 |
| Center to Cutting Edge (Decimal Inch) | 0.4724 |
| Head Length (mm) | 12.00 |
| Head Length (Decimal Inch) | 0.4724 |
| Toolholder Material | Steel |
