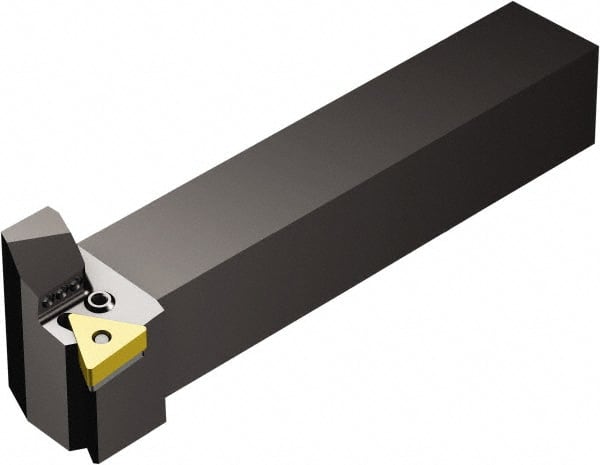

Sandvik Coromant - PTGNR/L..HP, Left Hand Cut, -1° Lead Angle, 20mm Shank Height x 20mm Shank Width, Negative Rake Indexable Turning Toolholder - 125mm OAL, TNMG 16 04 08, TNMG 332 Insert Compatibility, Series T-Max P
Item #: 49616097
Brand: Sandvik Coromant
Model #: 6188471
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | PTGNR/L..HP |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | -1 |
| Shank Width (mm) | 20.00 |
| Shank Width (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Insert Compatibility | TNMG 16 04 08; TNMG 332 |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (mm) | 125.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9213 |
| Center to Cutting Edge (Decimal Inch) | 0.9843 |
| Head Length (mm) | 23.90 |
| Head Length (Decimal Inch) | 0.9409 |
| Toolholder Material | Steel |
