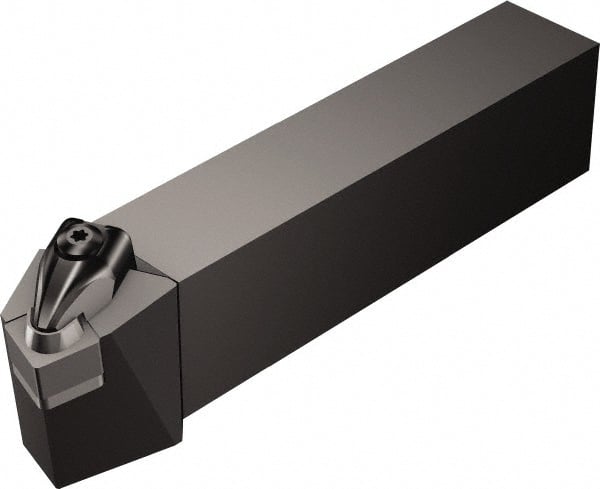

Sandvik Coromant - DSRNR/L, Right Hand Cut, 15° Lead Angle, 15.88mm Shank Height x 15.88mm Shank Width, Negative Rake Indexable Turning Toolholder - 114.3mm OAL, SNMG 09 03 08, SNMG 322 Insert Compatibility, Series T-Max P
Item #: 49620032
Brand: Sandvik Coromant
Model #: 5734488
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | DSRNR/L |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | 15 |
| Shank Width (mm) | 15.88 |
| Shank Width (Decimal Inch) | 0.6250 |
| Shank Height (mm) | 15.88 |
| Shank Height (Decimal Inch) | 0.6250 |
| Overall Length (mm) | 114.30 |
| Overall Length (Decimal Inch) | 4.5000 |
| Insert Compatibility | SNMG 09 03 08; SNMG 322 |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 114.30 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.5000 |
| Center to Cutting Edge (Decimal Inch) | 0.7830 |
| Head Length (mm) | 26.67 |
| Head Length (Decimal Inch) | 1.0500 |
| Toolholder Material | Steel |
