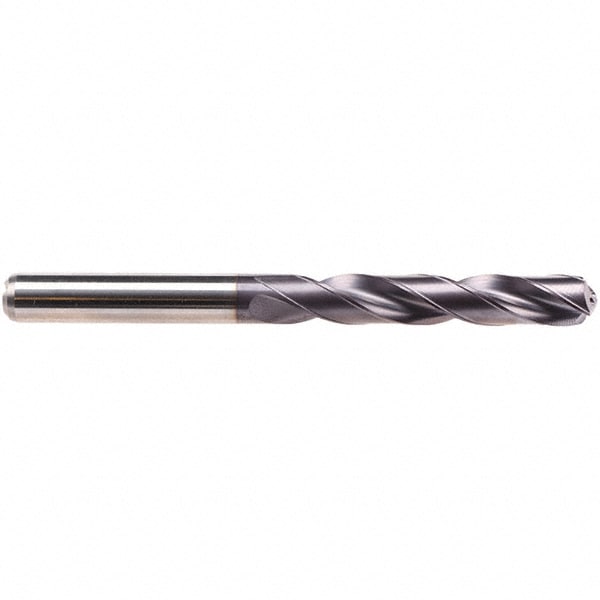

Brand: Emuge / Part #: TA219744.0315
Item #: 94329190
Brand: Emuge
Model #: TA219744.0315
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.1240 |
| Drill Bit Size (mm) | 3.15 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiAlN |
| Drill Point Angle (Degrees) | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Self Centering |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 66.0000 |
| Overall Length (Decimal Inch) | 2.5984 |
| Flute Length (mm) | 28.00 |
| Flute Length (Decimal Inch) | 1.1024 |
| Series | TA219744 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6.0000 |
| Maximum Drilling Depth (Decimal Inch) | 0.9055 |
| Maximum Drilling Depth (mm) | 23.00 |
| Shank Length (mm) | 36.000 |
| Shank Length (Decimal Inch) | 1.4173 |
| Drill Point Length (mm) | 0.60 |
| Drill Bit Diameter Tolerance | m7 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | High Performance |
| Specification Number | DIN 6537 L |
| Double Margin | Yes |
| Drill Bit Grade | High Performance |
| Material Grade | Sub Micrograin |
| Specification Designation | DIN |
