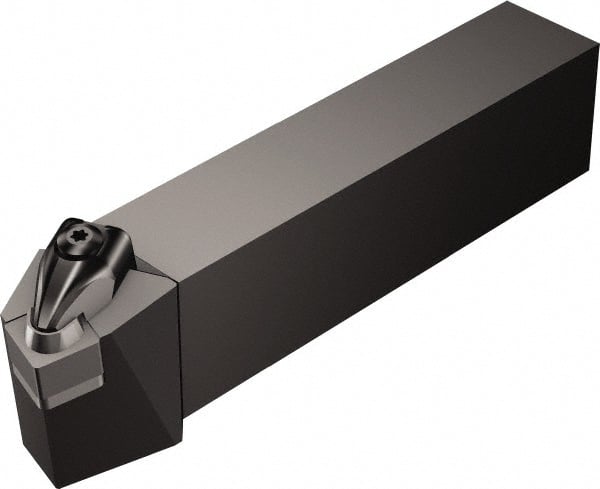

Sandvik Coromant - DSRNR/L, Right Hand Cut, 15° Lead Angle, 38.1mm Shank Height x 38.1mm Shank Width, Negative Rake Indexable Turning Toolholder - 152.4mm OAL, SNMG 19 06 12, SNMG 643 Insert Compatibility, Series T-Max P
Item #: 49650815
Brand: Sandvik Coromant
Model #: 5734472
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | DSRNR/L |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | 15 |
| Shank Width (mm) | 38.10 |
| Shank Width (Decimal Inch) | 1.5000 |
| Shank Height (mm) | 38.10 |
| Shank Height (Decimal Inch) | 1.5000 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | SNMG 19 06 12; SNMG 643 |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 152.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Center to Cutting Edge (Decimal Inch) | 1.6970 |
| Head Length (mm) | 46.48 |
| Head Length (Decimal Inch) | 1.8300 |
| Toolholder Material | Steel |
