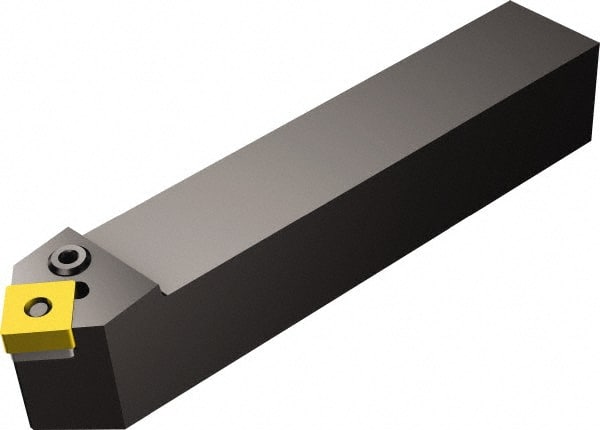

Sandvik Coromant - PSDNN, Neutral Cut, 45° Lead Angle, 20mm Shank Height x 20mm Shank Width, Negative Rake Indexable Turning Toolholder - 125mm OAL, SNMG 12 04 08, SNMG 432 Insert Compatibility, Series T-Max P
Item #: 49651052
Brand: Sandvik Coromant
Model #: 5740034
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | PSDNN |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | 45 |
| Shank Width (mm) | 20.00 |
| Shank Width (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Insert Compatibility | SNMG 12 04 08; SNMG 432 |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (mm) | 125.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9213 |
| Center to Cutting Edge (Decimal Inch) | 0.4055 |
| Head Length (mm) | 27.60 |
| Head Length (Decimal Inch) | 1.0866 |
| Toolholder Material | Steel |
