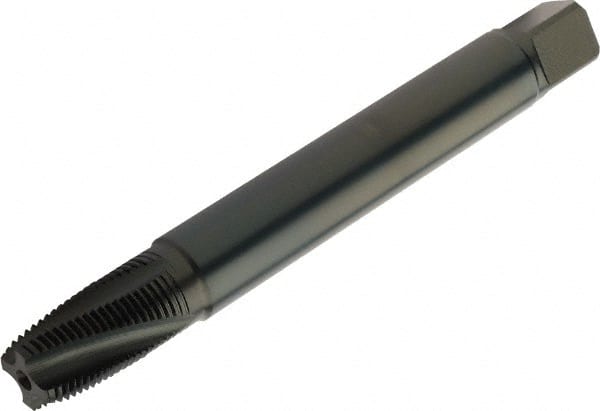

Sandvik Coromant - 1/8-27 NPTF 4 Flute Spiral Flute Tap - High Speed Steel, Steam Tempered Finish, 90mm OAL, Right Hand Thread, Series CoroTap 300
Item #: 49655566
Brand: Sandvik Coromant
Model #: 6967076
Exact Tooling IR#: 04
Features and Benefits
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Spiral flutes are constructed of a high flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 1/8-27 |
| Number of Flutes | 4 |
| Material | High Speed Steel |
| Finish/Coating | Steam Tempered |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 3.5433 |
| Overall Length (mm) | 90.00 |
| Helix Angle | 15 |
| Thread Standard | NPTF |
| Thread Length (Decimal Inch) | 0.5512 |
| Thread Length (mm) | 14.00 |
| Flute Type | Spiral |
| Series/List | CoroTap 300 |
| Tapping Depth (Decimal Inch) | 2.5197 |
| Tapping Depth (mm) | 64.00 |
| Shank Diameter (Decimal Inch) | 0.4370 |
| Shank Diameter (mm) | 11.10 |
| Material Application | Non-Ferrous Metals; Steel; Stainless Steel; Cast Iron |
