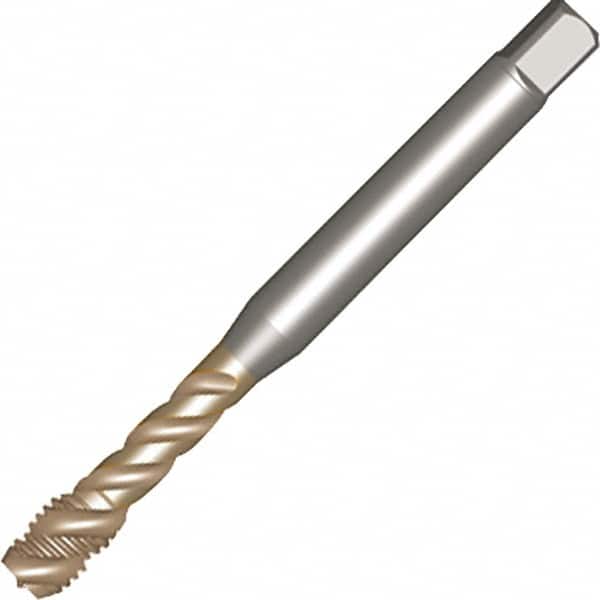

Sandvik Coromant - 1/4-20 UNC 3 Flute 3BX Spiral Flute Tap - High Speed Steel, Fe Finish, 80mm OAL, Right Hand Thread, Series CoroTap 300
Item #: 49656036
Brand: Sandvik Coromant
Model #: 6967020
Exact Tooling IR#: 04
Features and Benefits
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 1/4-20 |
| Class of Fit | 3BX |
| Number of Flutes | 3 |
| Material | High Speed Steel |
| Finish/Coating | Fe |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 3.1496 |
| Overall Length (mm) | 80.00 |
| Helix Angle | 45 |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 0.4331 |
| Thread Length (mm) | 11.00 |
| Series/List | CoroTap 300 |
| Tapping Depth (Decimal Inch) | 0.9843 |
| Tapping Depth (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Shank Diameter (mm) | 6.48 |
| Material Application | Steel; Stainless Steel; Cast Iron |
