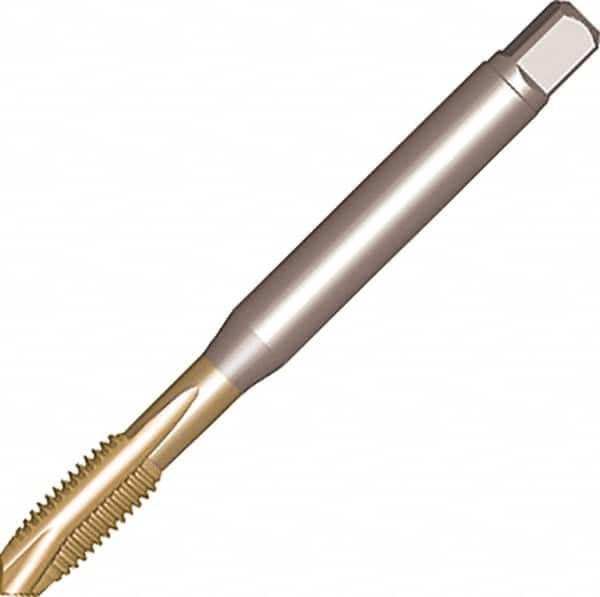

Sandvik Coromant - M8x1.25 Metric, 3 Flute, High Speed Steel Spiral Point Tap - Plug Chamfer, Right Hand Thread, 92.89mm OAL, 18.9mm Thread Length, 8.08mm Shank Diam, 6H Class of Fit, Series CoroTap 200
Item #: 49657240
Brand: Sandvik Coromant
Model #: 6967119
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M8x1.25 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 6H |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.6571 |
| Overall Length (mm) | 92.89 |
| Thread Standard | Metric;M |
| Thread Length (Decimal Inch) | 0.7441 |
| Thread Length (mm) | 18.90 |
| Series/List | CoroTap 200 |
| Tapping Depth (mm) | 34.00 |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Shank Diameter (mm) | 8.08 |
| Material Application | Steel; Stainless Steel; Cast Iron |
