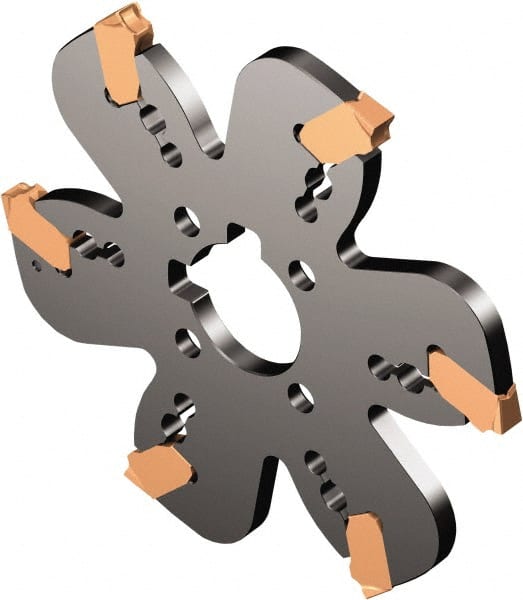

Sandvik Coromant - 0.0984" Cutting Width, 0.9449" Depth of Cut, 80mm Cutter Diam, 0.3937" Hole Diam, Indexable Slotting Cutter - 0.3937" Shank Diam, QD..X Toolholder, Right Hand Cutting Direction
Item #: 49662448
Brand: Sandvik Coromant
Model #: 6657517
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Width (mm) | 2.50 |
| Cutting Width (Decimal Inch) | 0.0984 |
| Cutting Width (Decimal Inch) | 0.098425 |
| Cutting Width (mm) | 2.5 |
| Maximum Depth of Cut (mm) | 24.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9449 |
| Maximum Depth of Cut (Decimal Inch) | 0.944882 |
| Maximum Depth of Cut (mm) | 24 |
| Cutter Diameter (mm) | 80.00 |
| Cutter Diameter (Decimal Inch) | 3.1496 |
| Hole Diameter (mm) | 10.00 |
| Hole Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Inch) | 0.393701 |
| Modular Connection Size | X10 |
| Toolholder Style | QD..X |
| Series | CoroMill QD |
| Number of Cutter Inserts | 5 |
| Cutting Direction | Right Hand |
| Cutting Direction | Right Hand |
| Maximum RPM | 5000 |
| Maximum RPM | 5000 |
| Through Coolant | No |
| Complete Insert Compatibility1 | QD-NF-0250-020E-PM |
| Overall Height (mm) | 2.65 |
| Overall Height (Decimal Inch) | 0.1043 |
