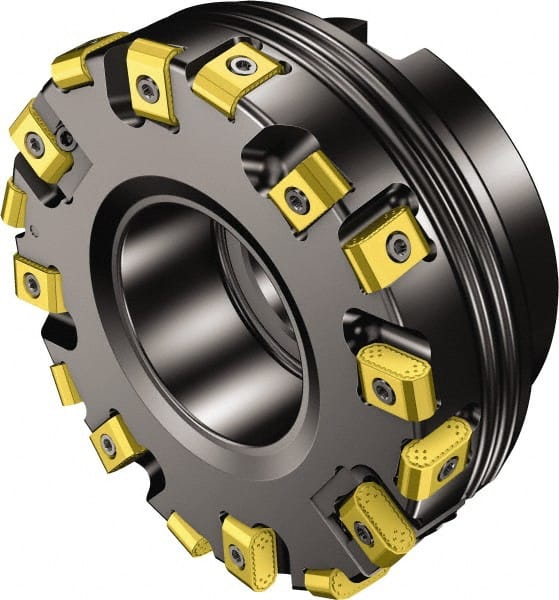

Sandvik Coromant - 125mm Cut Diam, 40mm Arbor Hole, 0.9mm Max Depth of Cut, 25° Indexable Chamfer & Angle Face Mill - 8 Inserts, 425N-1707 Insert, Right Hand Cut, Series CoroMill 425
Item #: 49664758
Brand: Sandvik Coromant
Model #: 6717967
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125 |
| Cutting Diameter (Decimal Inch) | 4.92126 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 25 |
| Overall Height (mm) | 63 |
| Insert Compatibility | 425N-1707 |
| Series | CoroMill 425 |
| Maximum Depth of Cut (mm) | 0.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.035433 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | 425..Qxx |
| Hub Diameter (Decimal Inch) | 3.8819 |
| Hub Diameter (mm) | 98.60 |
| Keyway Width (mm) | 16.40 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Maximum Body Diameter (Decimal Inch) | 4.9843 |
| Maximum RPM | 3820 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | 425N-1707 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | 425N-1707 |
| Insert Holding Method | Screw |
| Maximum RPM | 3820 |
| Toolholder Material | Steel |
| Through Coolant | No |
