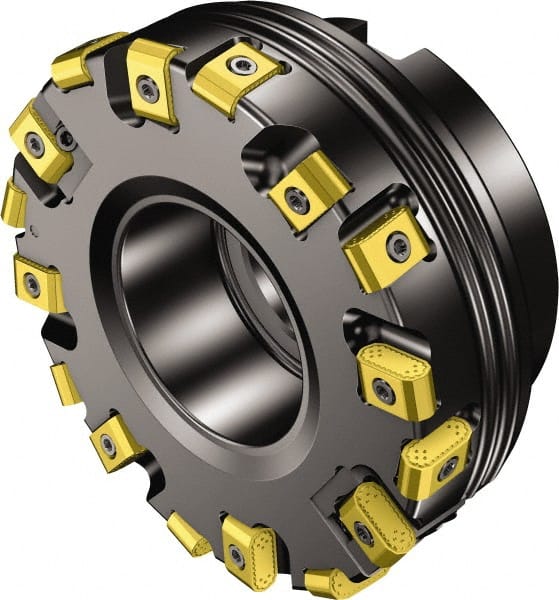

Sandvik Coromant - 100mm Cut Diam, 32mm Arbor Hole, 0.9mm Max Depth of Cut, 25° Indexable Chamfer & Angle Face Mill - 6 Inserts, 425N-1707 Insert, Right Hand Cut, Series CoroMill 425
Item #: 49664774
Brand: Sandvik Coromant
Model #: 6717966
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 25 |
| Overall Height (mm) | 63 |
| Insert Compatibility | 425N-1707 |
| Series | CoroMill 425 |
| Maximum Depth of Cut (mm) | 0.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.035433 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | 425..Qxx |
| Hub Diameter (Decimal Inch) | 3.2244 |
| Hub Diameter (mm) | 81.90 |
| Keyway Width (mm) | 14.40 |
| Keyway Width (Decimal Inch) | 0.5669 |
| Maximum Body Diameter (Decimal Inch) | 4.0118 |
| Maximum RPM | 4770 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | 425N-1707 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | 425N-1707 |
| Insert Holding Method | Screw |
| Maximum RPM | 4770 |
| Toolholder Material | Steel |
| Through Coolant | No |
