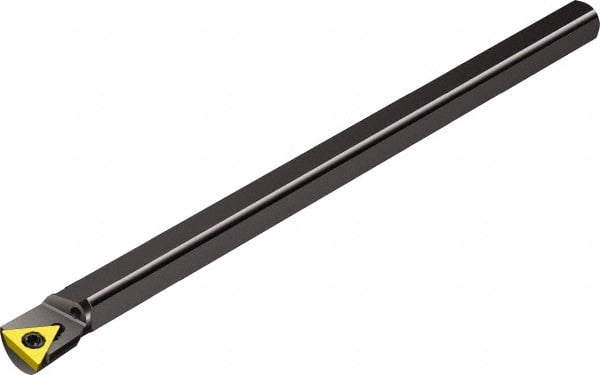

Sandvik Coromant - 25mm Min Bore Diam, 250mm OAL, 20mm Shank Diam, A..STFPR/L Indexable Boring Bar - TPMT 3(2.5)2, TPMT 16 T3 08 Insert, Screw or Clamp Holding Method
Item #: 49676083
Brand: Sandvik Coromant
Model #: 5721657
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A..STFPR/L |
| Series | CoroTurn 111 |
| Minimum Bore Diameter (mm) | 25.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.9843 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Compatibility | TPMT 3(2.5)2; TPMT 16 T3 08 |
| Through Coolant | Yes |
| Insert Holding Method | Screw or Clamp |
| Rake | Neutral |
| Neck Diameter (Decimal Inch) | 0.7874 |
| Lead Angle | -1 |
| Back of Bar to Cutting Edge (mm) | 250.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 9.8425 |
| Center to Cutting Edge (mm) | 13.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5118 |
| Rake Angle | 0 |
| Complete Insert Compatibility | TPMT 3(2.5)2; TPMT 16 T3 08 |
| Toolholder Material | Steel |
