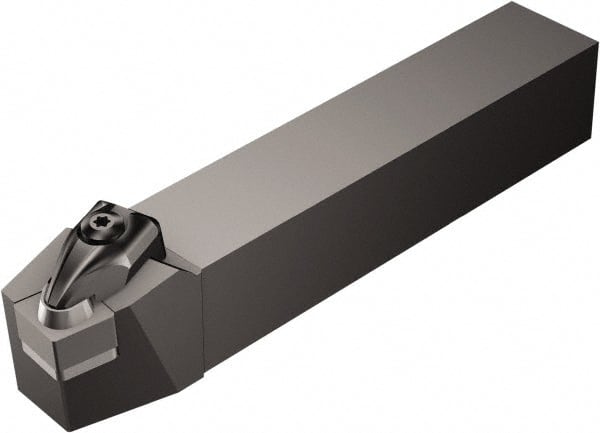

Sandvik Coromant - LH CCBNR/L Negative Rake Indexable Turning Toolholder
Item #: 49679707
Brand: Sandvik Coromant
Model #: 5723123
Product Specifications
| Hand of Holder | Left Hand |
| Toolholder Style | CCBNR/L |
| Rake | Negative |
| Series | T-Max |
| Lead Angle | 15 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | CNGN 12 07 08; CNG 452 |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 150.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.9055 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Head Length (mm) | 34.60 |
| Head Length (Decimal Inch) | 1.3622 |
| Toolholder Material | Steel |
