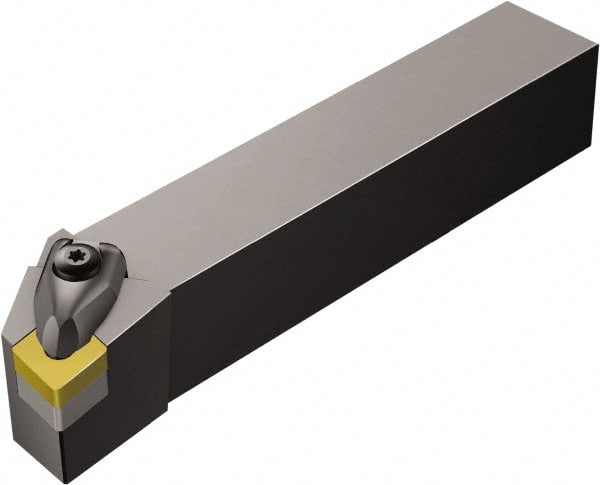

Sandvik Coromant - DCLNR/L, Left Hand Cut, -5° Lead Angle, 50mm Shank Height x 50mm Shank Width, Negative Rake Indexable Turning Toolholder - 300mm OAL, CNMG 25 09 24, CNMG 866 Insert Compatibility, Series T-Max P
Item #: 49681315
Brand: Sandvik Coromant
Model #: 5730812
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DCLNR/L |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | -5 |
| Shank Width (mm) | 50.00 |
| Shank Width (Decimal Inch) | 1.9685 |
| Shank Height (mm) | 50.00 |
| Shank Height (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Insert Compatibility | CNMG 25 09 24; CNMG 866 |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 300.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 11.8110 |
| Center to Cutting Edge (Decimal Inch) | 2.3622 |
| Head Length (mm) | 53.20 |
| Head Length (Decimal Inch) | 2.0945 |
| Toolholder Material | Steel |
