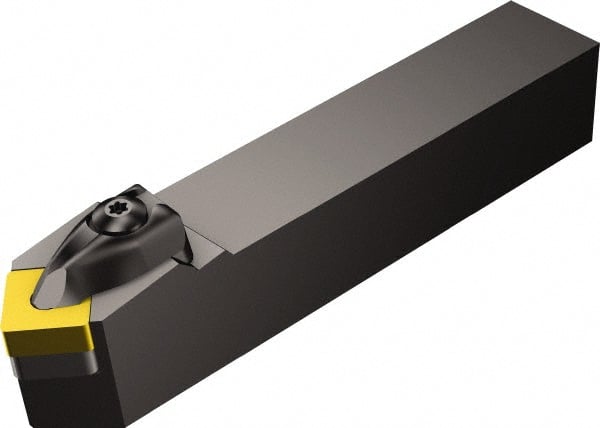

Sandvik Coromant - DSDNN, Neutral Cut, 45° Lead Angle, 40mm Shank Height x 40mm Shank Width, Negative Rake Indexable Turning Toolholder - 250mm OAL, SNMG 25 07 24, SNMG 856 Insert Compatibility, Series T-Max P
Item #: 49681471
Brand: Sandvik Coromant
Model #: 5733061
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | DSDNN |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | 45 |
| Shank Width (mm) | 40.00 |
| Shank Width (Decimal Inch) | 1.5748 |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Insert Compatibility | SNMG 25 07 24; SNMG 856 |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 250.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 9.8425 |
| Center to Cutting Edge (Decimal Inch) | 0.8268 |
| Head Length (mm) | 57.20 |
| Head Length (Decimal Inch) | 2.2520 |
| Toolholder Material | Steel |
