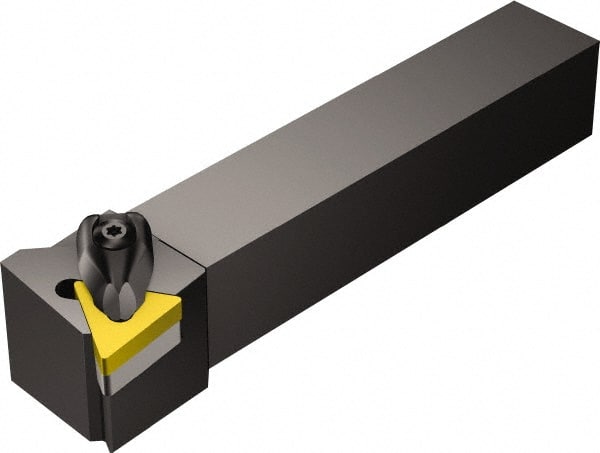

Sandvik Coromant - DTJNR/L, Right Hand Cut, -3° Lead Angle, 16mm Shank Height x 16mm Shank Width, Negative Rake Indexable Turning Toolholder - 100mm OAL, TNMG 16 04 08, TNMG 332 Insert Compatibility, Series T-Max P
Item #: 49681737
Brand: Sandvik Coromant
Model #: 5733172
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | DTJNR/L |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | -3 |
| Shank Width (mm) | 16.00 |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Insert Compatibility | TNMG 16 04 08; TNMG 332 |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 100.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 3.9370 |
| Center to Cutting Edge (Decimal Inch) | 0.7874 |
| Head Length (mm) | 24.90 |
| Head Length (Decimal Inch) | 0.9803 |
| Toolholder Material | Steel |
