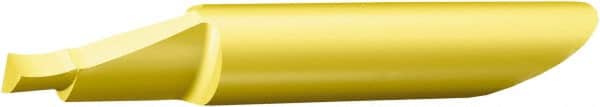

Sandvik Coromant - 2.65mm Groove Width, 22mm Min Hole Diam, 30mm Max Hole Depth, Grooving Tool - 38mm Projection, 70.91mm OAL, Solid Carbide, TiAlN+TiN Finish
Item #: 49682396
Brand: Sandvik Coromant
Model #: 6365886
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.00 |
| Groove Width (Decimal Inch) | 0.1043 |
| Groove Width (mm) | 2.65 |
| Projection (Decimal Inch) | 1.4961 |
| Projection (mm) | 38.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.8661 |
| Minimum Hole Diameter (mm) | 22.00 |
| Maximum Hole Depth (Decimal Inch) | 1.1811 |
| Maximum Hole Depth (mm) | 30.00 |
| Overall Length (Decimal Inch) | 2.7917 |
| Overall Length (mm) | 70.91 |
| Finish/Coating | TiAlN+TiN |
| Manufacturer Grade | 1025 |
