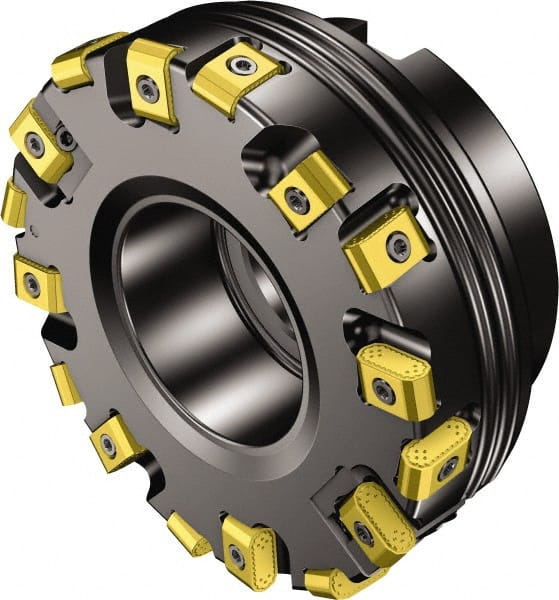

Sandvik Coromant - 200mm Cut Diam, 60mm Arbor Hole, 0.9mm Max Depth of Cut, 25° Indexable Chamfer & Angle Face Mill - 12 Inserts, 425N-1707 Insert, Right Hand Cut, Series CoroMill 425
Item #: 49686116
Brand: Sandvik Coromant
Model #: 6717969
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 200 |
| Cutting Diameter (Decimal Inch) | 7.87402 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3622 |
| Lead Angle | 25 |
| Overall Height (mm) | 63 |
| Insert Compatibility | 425N-1707 |
| Series | CoroMill 425 |
| Maximum Depth of Cut (mm) | 0.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.035433 |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Cutter Style | 425..Qxx |
| Hub Diameter (Decimal Inch) | 6.3425 |
| Hub Diameter (mm) | 161.10 |
| Keyway Width (mm) | 25.70 |
| Keyway Width (Decimal Inch) | 1.0118 |
| Maximum Body Diameter (Decimal Inch) | 7.9173 |
| Maximum RPM | 2390 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | 425N-1707 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | 425N-1707 |
| Insert Holding Method | Screw |
| Maximum RPM | 2390 |
| Toolholder Material | Steel |
| Through Coolant | No |
