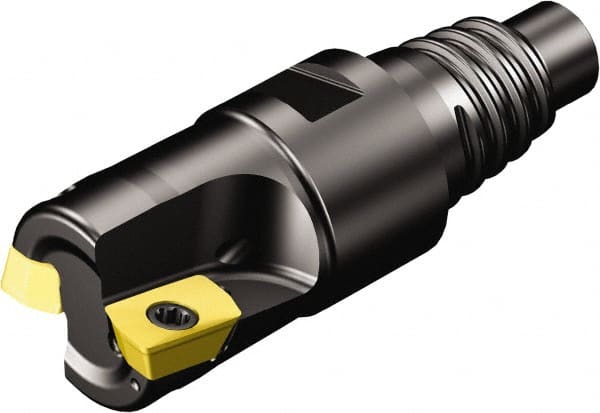

Sandvik Coromant - 5 Inserts, 20mm Cut Diam, 19.3mm Arbor Diam, 5.8mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 44.5mm High, 390R-07.. Insert Compatibility, Through Coolant, Series CoroMill 390
Item #: 49686678
Brand: Sandvik Coromant
Model #: 6851108
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Arbor Hole Diameter (mm) | 19.30 |
| Arbor Hole Diameter (Decimal Inch) | 0.7598 |
| Overall Height (mm) | 44.50 |
| Overall Height (Decimal Inch) | 1.7520 |
| Insert Compatibility | 390R-07.. |
| Series | CoroMill 390 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.2283 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | R390..EH..-07 |
| Maximum Body Diameter (Decimal Inch) | 0.7480 |
| Maximum RPM | 32500 |
| ISO Number | R390-020EH20-07H |
| Complete Insert Compatibility | 390R-07.. |
| Toolholder Material | Steel |
