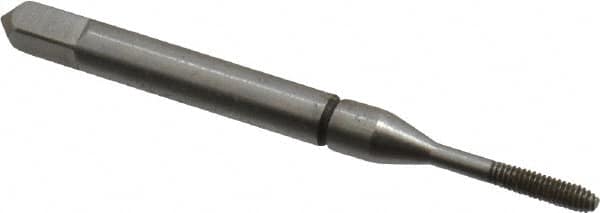

Balax - M1.7x0.35 Metric Coarse D5 Thread Limit Bottoming Thread Forming Tap - High Speed Steel, Bright Finish, 1-5/8" OAL, Right Hand Thread, Series BXMB
Item #: 49715048
Brand: Balax
Model #: 17145
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes to the bottom. They have 1 to 2 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M1.7x0.35 |
| Thread Limit | D5 |
| Chamfer | Bottoming |
| Finish/Coating | Bright |
| Material | High Speed Steel |
| Overall Length (Inch) | 1-5/8 |
| Thread Standard | Metric Coarse |
| Series/List | BXMB |
| Thread Direction | Right Hand |
