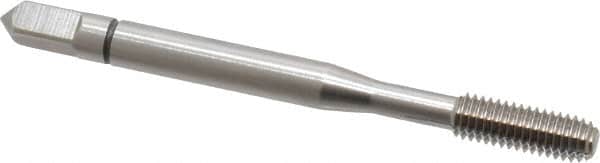

Balax - #10-32 UNF H3 Thread Limit Bottoming Thread Forming Tap - Powdered Metal High Speed Steel, Bright Finish, 2-3/8" OAL, 0.64" Thread Length, Right Hand Thread, Series BXSG
Item #: 49720063
Brand: Balax
Model #: 12313
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes to the bottom. They have 1 to 2 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #10-32 |
| Thread Limit | H3 |
| Chamfer | Bottoming |
| Finish/Coating | Bright |
| Material | Powdered Metal High Speed Steel |
| Overall Length (Inch) | 2-3/8 |
| Thread Standard | UNF |
| Thread Length (Decimal Inch) | 0.6400 |
| Series/List | BXSG |
| Neck Length (Inch) | 7/8 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Square Length (Inch) | 1/4 |
