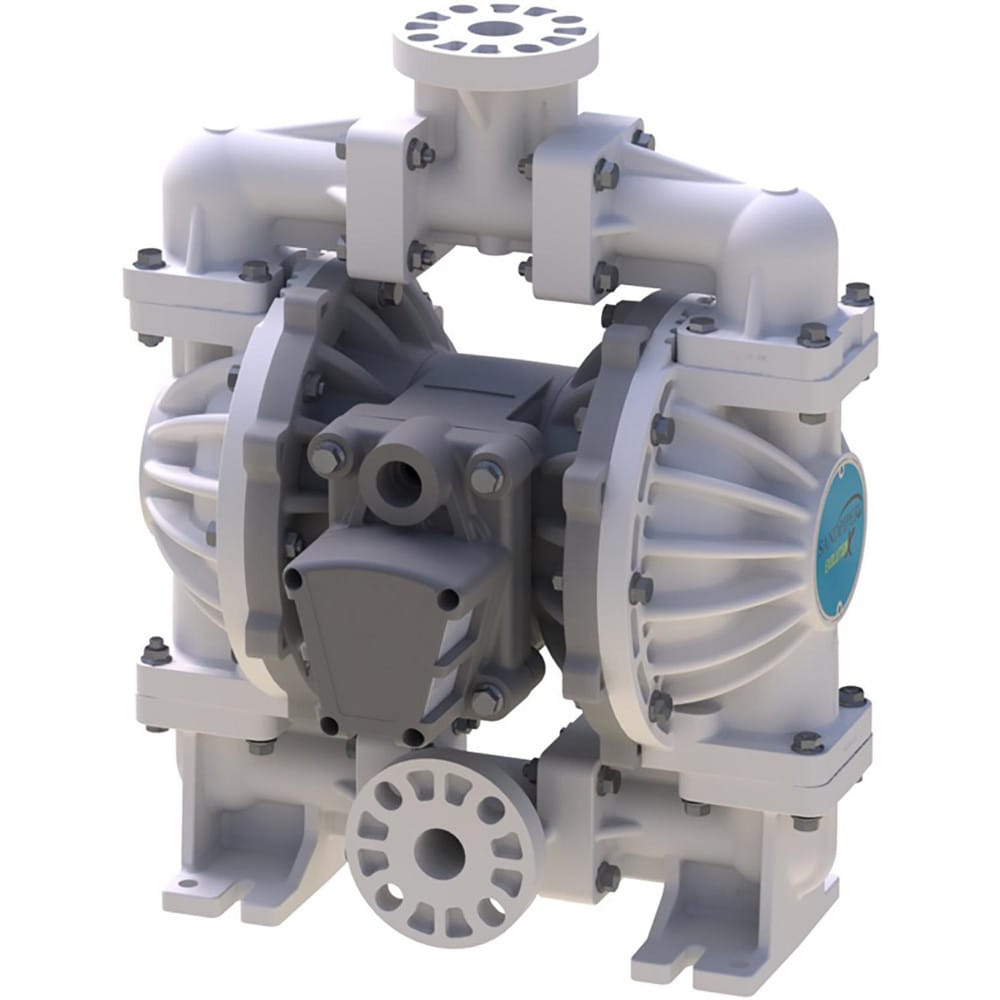

Air-Operated Diaphragm Pumps; Maximum Flow Rate (Gpm
Item #: 02364966
Brand: SandPIPER
Model #: SPE10BPPR0RP000UC1
Product Specifications
| Maximum Flow Rate (Gpm - 2 Decimals) | 63.00 |
| Maximum Working Pressure | 125.000 |
| Thread Type | Flange |
| Inlet Size | 1 in |
| Cubic Feet Per Minute | 35 SCFM |
| Diaphragm Material | Santoprene |
| Ball Material | Santoprene |
| Check Seat Material | Polypropylene |
| Height (Inch) | 19.39 |
| Width (Inch) | 15.61 |
| Length (Inch) | 12.25 |
| Port Type | ANSI/DIN Flange |
| Body Material | Polypropylene |
| Maximum Temperature (F) ( - 0 Decimals) | 180.000 |
| Maximum Solid Size (Inch) | 1 |
| Air Inlet Size (Inch) | 3/4 |
| Maximum Cubic Feet Per Minute (CFM) | 35.00 |
| UNSPSC Code | 40151548 |
