Brand: Widia / Part #: 6018093
Item #: 96401013
Brand: Widia
Model #: 6018093
Product Specifications
| Insert Style | TPGW |
| Insert Shape Code | T |
| Insert Size Code | 2152 |

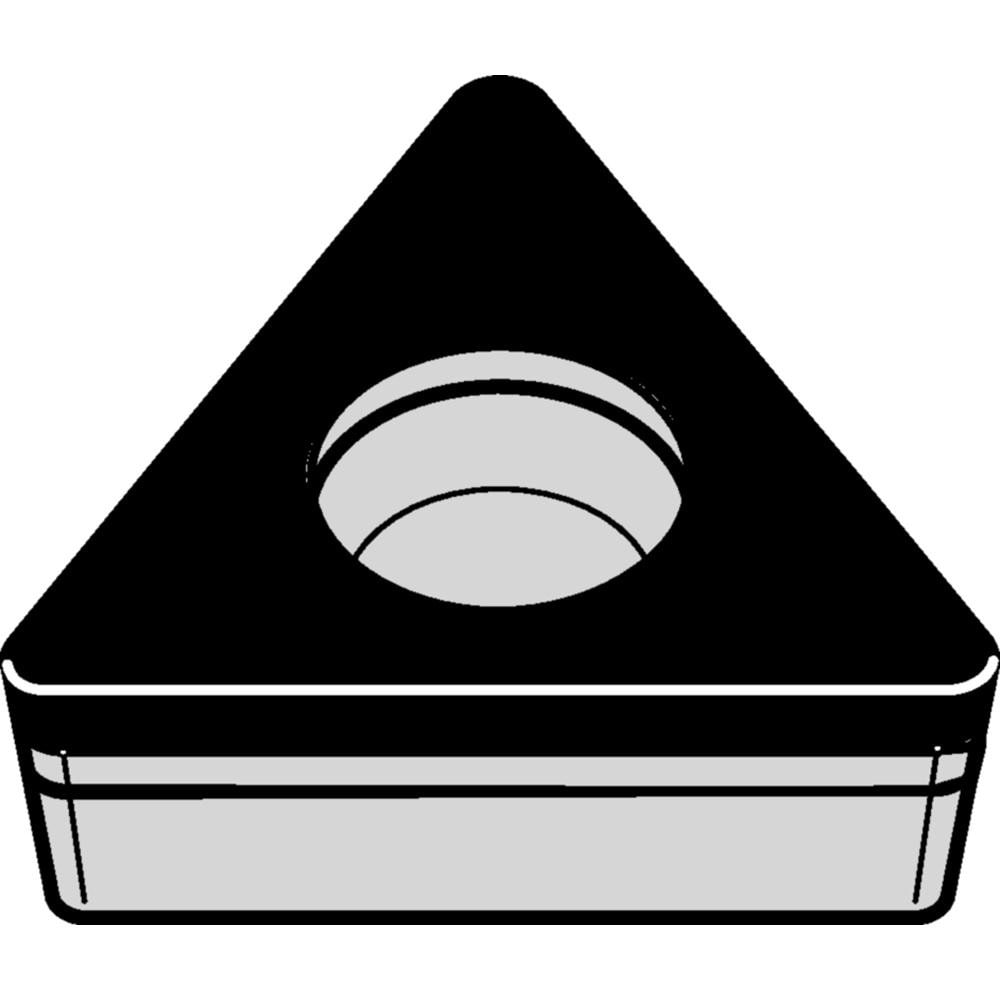

| Insert Shape | Triangle |
| Coating/Finish | AlTiN |
| Manufacturer Grade | WBH30P |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.2166 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Clearance Code | P |
| Tolerance Code | G |
| Included Angle | 60.00 |
| Relief Angle | 11.000 |
| Series | TPGW |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.4331 |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | TPGW2152S0415C |
| Iso Code | TPGW110208S01015C |
| Manufacturers Catalog Number | TPGW2152S0415C |
| Cutting Direction | Neutral |
| Single or Multi Tipped | Multi Tipped |
| Coating Classification | PVD |
| Chip Breaker | C |
| Cutting Edge Style | Chamfered and Rounded |
| Style | TPGW |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning |
